240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface
Description
1. LCD Size: 2.2” inch TFT
2. Resolution: 240x320 dots
3. Viewing Angle: 12 O'Clock
4. Outline Dimension: 40.6*56.6*2.7 mm
5. Driver IC: ST7789V
6. Interface Type: RGB
7. Touch Panel: Without Touch Panel (Customizable)
8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
| Product: | 2.2" RGB TFT LCD | Resolution: | 240x320 Dots |
| Touch Screen: | Without Touch Screen ( Customizable ) | Viewing Direction: | 12 O'clock |
| Interface: | RGB 18bits | Pin Number: | 39 Pins |
| Connection: | Plugging | Surface Luminance: | 200 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ | Compliance: | ISO9001 & RoHS Compliant |
Product Advantages
1.Excellent display performance of background color, luminance, viewing angle, and intensity etc. surface luminance can be reach 1000 nits.
2.High quality level for industrial and medical applications.
3.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
4.Price competitive solution with good quality among the same kinds in the LCD industry.
5.Easy to install and easy to maintain.
Drawing
Basic parameters:
The screen size is 2.2 inches, with a resolution of 240×320. It can provide relatively clear display effects, suitable for displaying small images, text information, etc. The display mode is usually transmissive, using white LED backlighting, with a contrast ratio of up to 600:1, which can well present the image colors. The working temperature range is -20℃ to 70℃, and the storage temperature range is -30℃ to 80℃. It has certain environmental adaptability.
Driver chip: It uses the ST7789V driver chip, which is a TFT and LCD driver chip with built-in memory. The maximum usage bit width is 18 bits, and the bit width for RGB pixel control is 12 to 18 bits. It can achieve color modes such as RGB444, RGB565, and RGB666. The communication interfaces include parallel interface and serial interface. The parallel interface is the 8080 standard, with fast transmission speed; the serial interface is the SPI standard, saving pin resources.
Interface characteristics: It has 39 pins and supports 18-bit interface. This interface method can provide a high data transmission rate and achieve richer color display and smoother image refresh. Common interface types include MCU interface and SPI interface, facilitating connection with various microcontrollers, such as STM32, Arduino, etc.
Appearance design: The screen border is narrow, the overall design is compact, the size is small, and it is easy to be embedded in various small devices. Its shape is usually rectangular, connected by FPC (flexible printed circuit board), convenient for installation and wiring.
Product Applications
Industrial Control: Often used in PLC controllers, HMI human-machine interfaces, etc., it can display information such as equipment status, parameters, and fault codes in real time, helping operators quickly understand the operation of the equipment and promptly carry out fault detection and maintenance.
Medical Equipment: Used in portable ultrasound machines, handheld blood oxygen meters, monitors, etc., to display key data and images, such as electrocardiogram waveforms, blood oxygen saturation values, ultrasound images, etc., providing clear visual information for medical diagnosis.
Smart Home: Can be applied to smart door locks, thermostats, smart curtain controllers, etc., achieving visual interaction, such as displaying dynamic password input interfaces, equipment status information, operation prompts, etc., enhancing the convenience of using home devices and user experience.
Automotive Electronics: As display units for in-vehicle navigation, rearview cameras, dashboard secondary screens, etc., it provides display of rearview images, tire pressure monitoring data, vehicle energy consumption, etc., helping drivers better understand the vehicle condition.
Electronic DIY and Embedded Development: Due to its small size, rich interfaces, and high performance, it is an ideal choice for embedded development and DIY electronic projects, such as smart watches, small dashboards, thermometers, timers, etc. Developers can use it to implement various creative functions.
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?
Answer: No problem. Firstly, please kindly send us your specification/ drawing paper
If you have not the specification, you can also provide your samples; we will recommend the suitable one
if it is standard products. Or we can customize for you based on your own requirement.
2.This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the outline size or display content,
a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type,can you make?
Answer: That’s all right . we can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size
of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment,
we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes,. Samples order is available.
7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for
special ones, the leading time is about 15-30 days. suppose we can finish earlier, we will report the information in advanced.

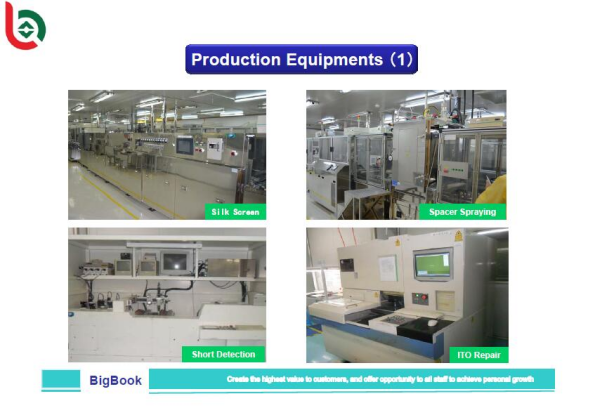

Production Line:
☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf
☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
☆ COG production lines: 4 .
☆ Backlight production lines: 2 .
☆ Existing machine capacity will be 1KK per month.
